BNC Connectors

The BNC connector is a type of coaxial RF (Radio frequency) electrical connector that is used in place of coaxial connectors. The BNC connector got its name from its bayonet mount locking device and its inventors, Paul Neill and Carl Concelman. Its close-fitting connection uses a mount comparable to a knife (bayonet) that is attached onto the end of a rifle.

One of the benefits of the BNC connector is its close-fitting connection. The connection is locked by the BNC male connector that has a pin that fits into the main conducting wire. It is then secured in place with an external ring that turns to a locked position. A BNC connector can be connected to various types of coaxial cables and typically uses voltages below 500 volts and frequencies below 3 GigaHertz. BNC connectors are most commonly made in 50 and 75 ohm versions, matched for use with cables of the same characteristic impedance. BNC’s are ideally used for high speed video, aerospace electronics and test equipment applications.

SubHeader-BNC



Part # Description Spec Img

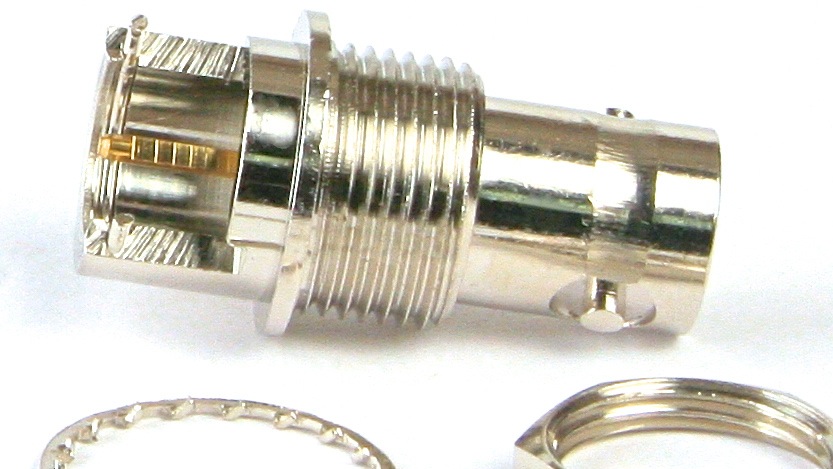

BNC31101-HM-50R BNC Connectors, Single V Cut Metal, 50 ohm-Single Port
BNC31101-HM-75R BNC Connectors, Single V Cut Metal, 75 ohm-Single Port
BNC31201-HMV-50R BNC Connectors, Std. Ht. Metal Shield, 50 ohm-Single Port
BNC31201-HMV-75R BNC Connectors, Std. Ht. Metal Shield, 75 ohm-Single Port
BNC31201-HWV-50R BNC Connectors, Std. Ht. White, 50 ohm-Single Port
BNC31201-HWV-75R BNC Connectors, Std. Ht. White, 75 ohm-Single Port
BNC31201-LMV-50R BNC Connectors, Low Profile Metal, 50 ohm-Single Port
BNC31201-LMV-75R BNC Connectors, Low Profile Metal, 75 ohm-Single Port
BNC31201-LWV-50R BNC Connectors, Low Profile White, 50 ohm-Single Port
BNC31201FHBV50R BNC Connectors With Capacitor-Single Port, 50 ohm-Single Port
BNC31201FHBV75R BNC Connectors With Capacitor-Single Port, 75 ohm-Single Port

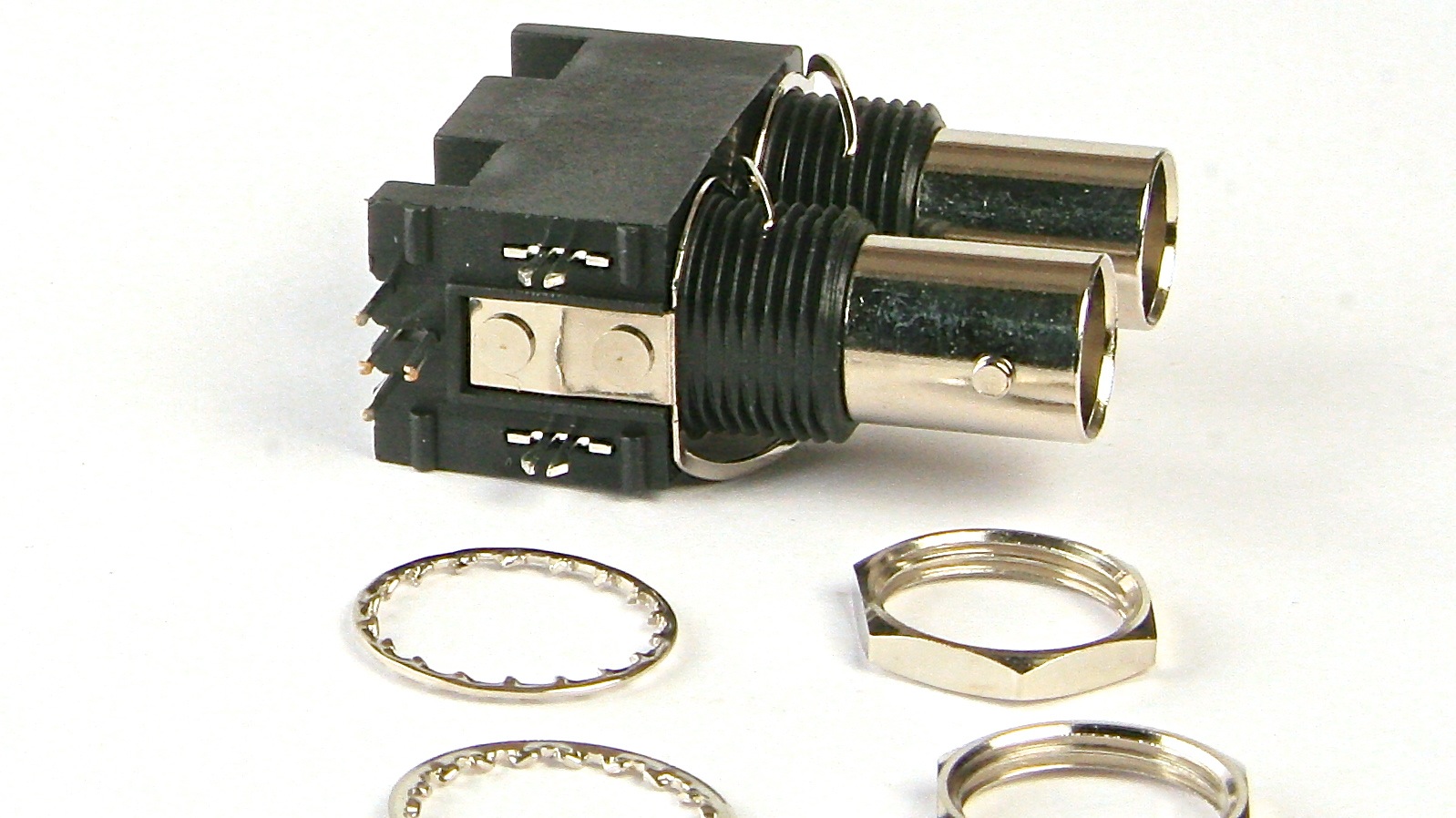

BNC31202FHBV50R BNC Connectors With Capacitor-Dual Port, 50 ohm
BNC31202FHBV75R BNC Connectors With Capacitor-Dual Port, 75 ohm
BNC31202-HMV-50R BNC Connectors, Std. Ht. Metal-Dual Port, 50 ohm
BNC31202-HMV-75R BNC Connectors, Std. Ht. Metal-Dual Port, 75 ohm
BNC31202-HWV50R BNC Connectors, Std. Ht. White-Dual Port, 50 ohm
BNC31202-HWV75R BNC Connectors, Std. Ht. White-Dual Port, 75 ohm
BNCM31202-LM75R MINI BNC Connector, Metal-Dual Port, 75 ohm

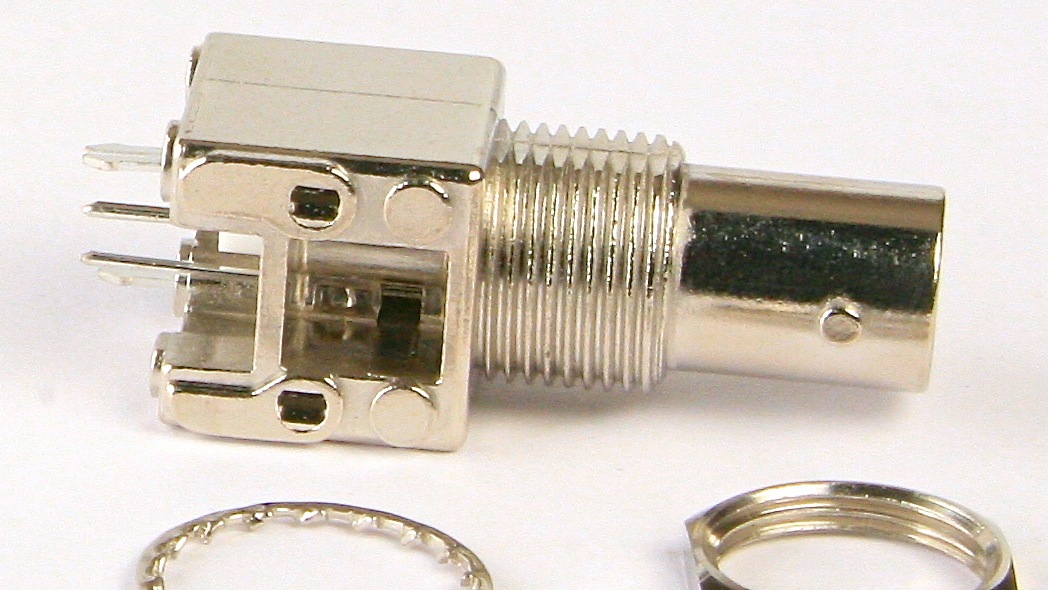

BNCV31201-HMV-50R BNC Vertical Connectors, Std. Ht. Metal, 50 ohm-Single Port
BNCV31201-HMV-75R BNC Vertical Connectors, Std. Ht. Metal, 75 ohm-Single Port
BNCV31201-HWV-50R BNC Vertical Connectors, Std. Ht. White, 50 ohm-Single Port
BNCV31201-HWV-75R BNC Vertical Connectors, Std. Ht. White, 75 ohm-Single Port
BNC31204F-HW-75R BNC Connectors with Capacitors-Four Port-75 ohm
BNC31204-HW-75R BNC Connec -Four Port-75 ohm

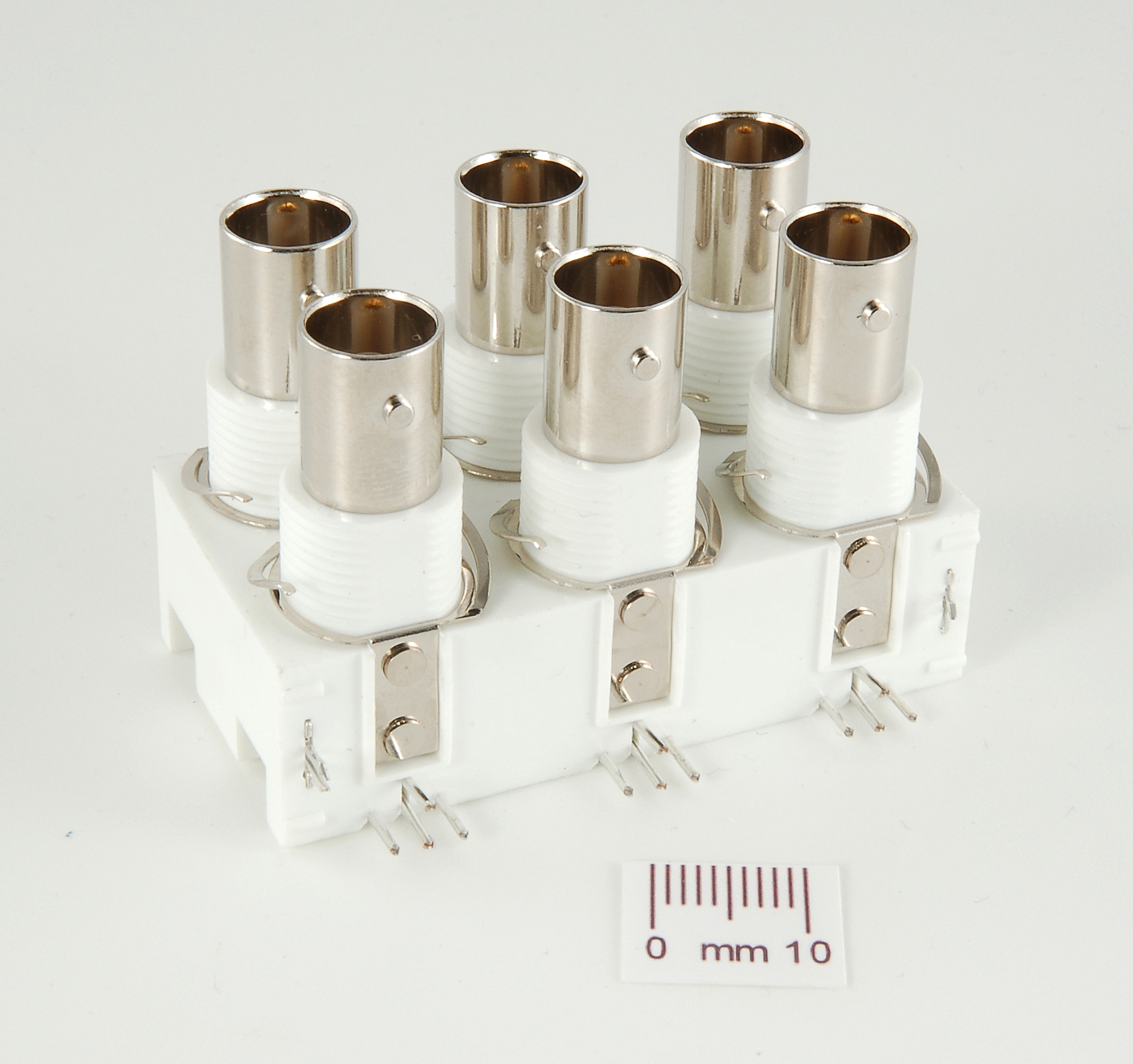

BNC31206F-HW-75R BNC Connectors with Capacitors-Six Port-75 ohm

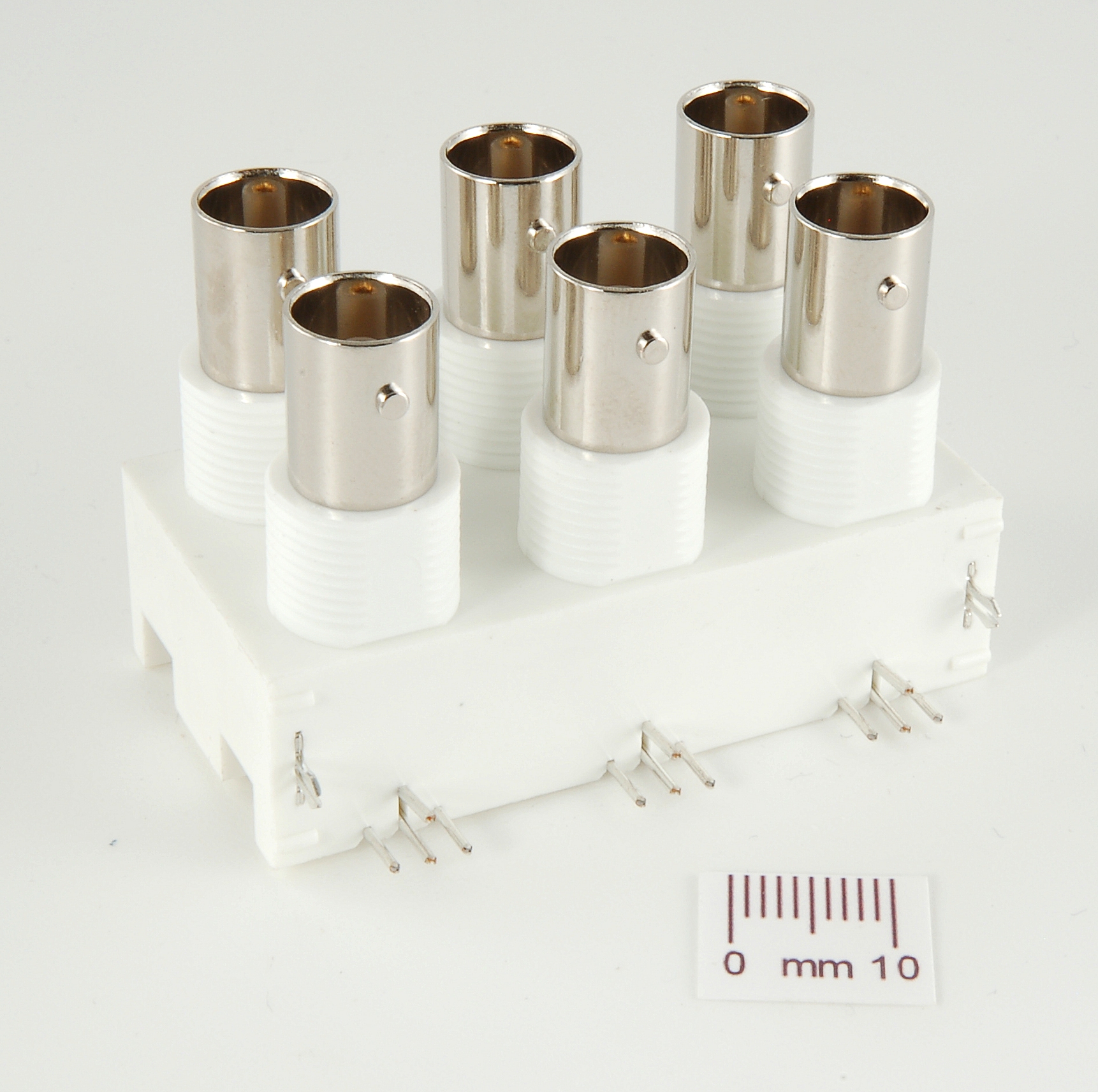

BNC31206-HW-75R BNC Connec -Six Port-75 ohm

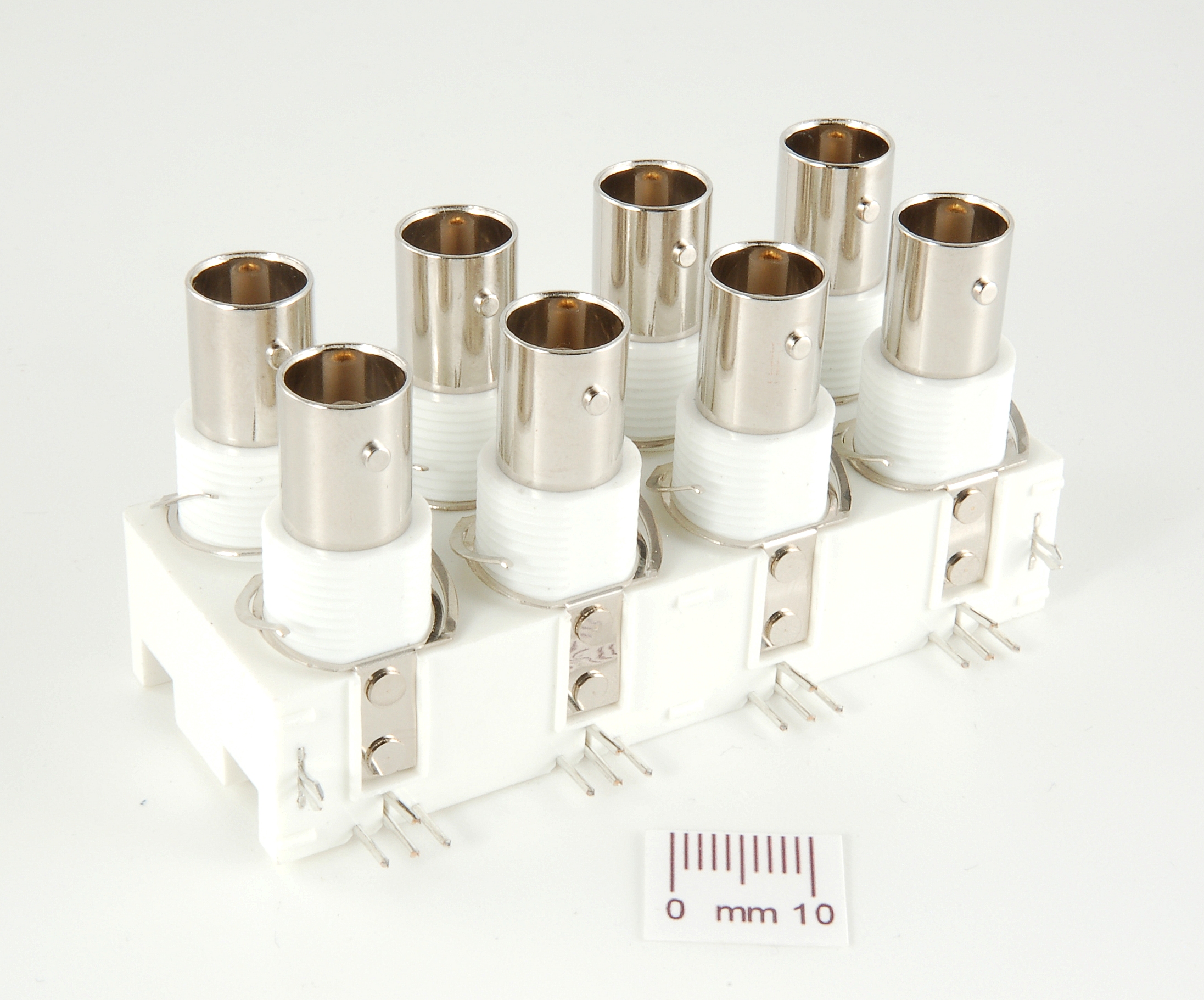

BNC31208F-HW-75R BNC Connectors with Capacitors-Eight Port-75 ohm

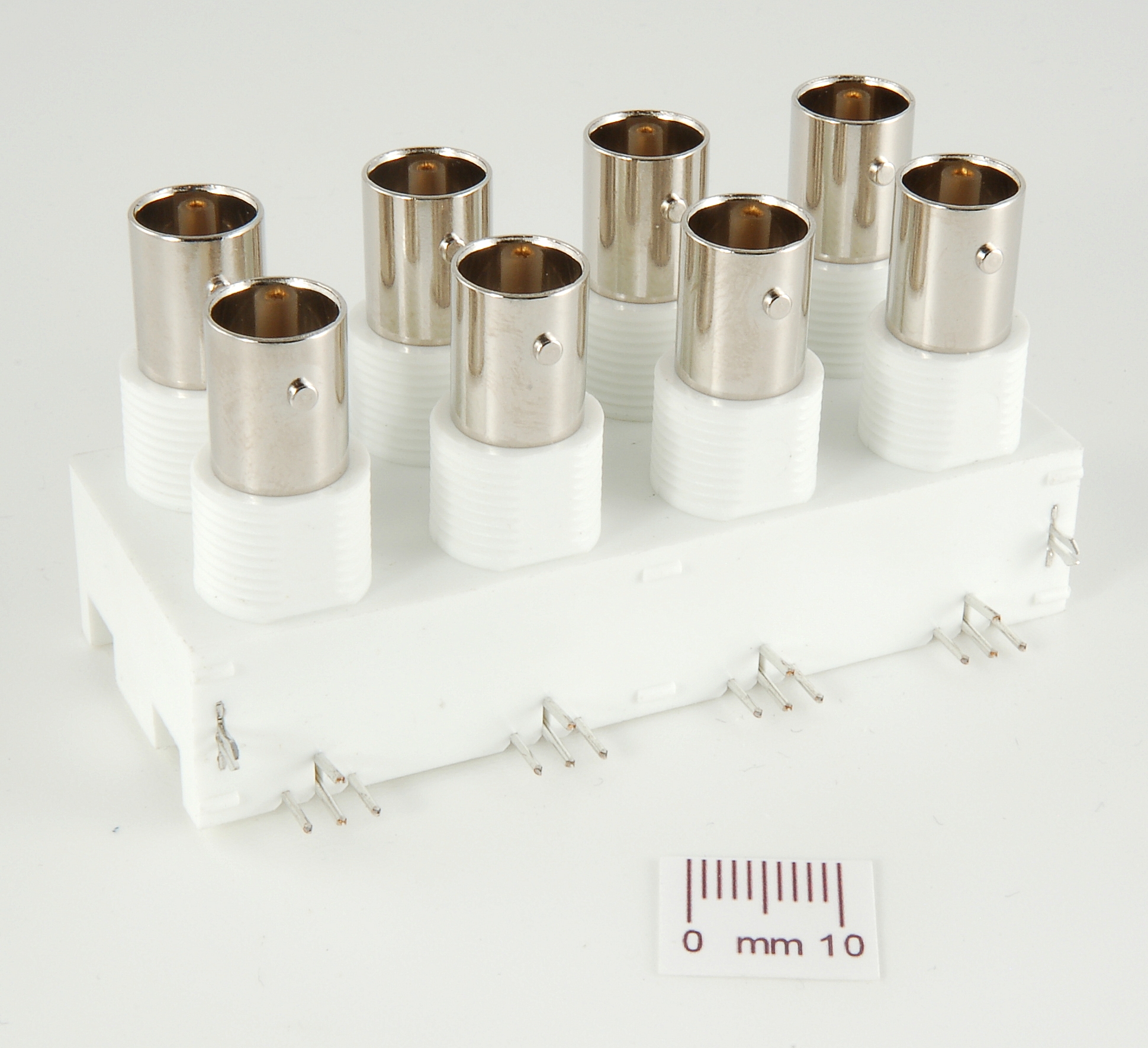

BNC31208-HW-75R BNC Connec -Eight Port-75 ohm
